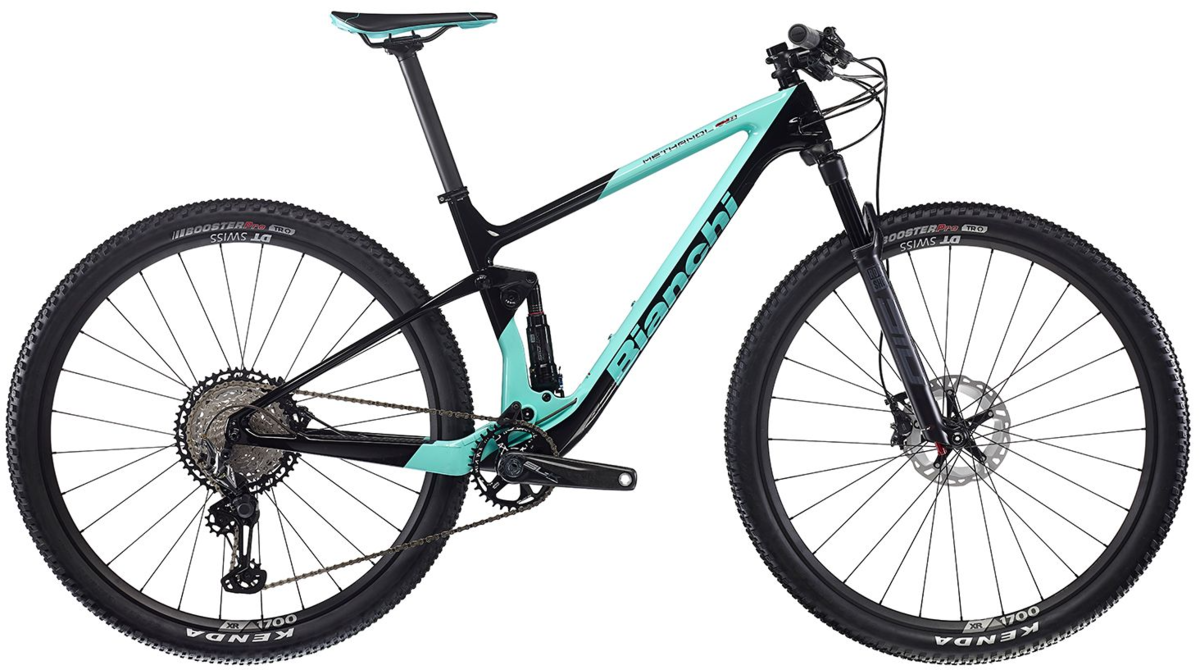

Bianchi Methanol CV FS 9.2

Bianchi Methanol CV FS 9.2
Please select options
Sorry, this item is currently not available. Please contact us to check availability.


Bianchi Cross Country mountain bikes are at home on all trail surfaces and combine control and comfort for a smooth and responsive ride on rough terrain.

Geo Chart

Geometry Chart:
A (mm) 410 440 480 520
B1 (mm) 570 600 626 646
C (mm) 435 435 435 435
D (mm) 50 50 50 50
E (mm) 90 100 110 120
F (mm) 669 700 726 747
G 75° 75° 75° 75°
G1 68.5° 68.5° 68.5° 68.5°
H (mm) 44 44 44 44
I (mm) 506 506 506 506
X (mm) 407 435 458 475
Y (mm) 588 597 606 616
WB (mm) 1099 1130 1157 1178


Frame Methanol CV FS 100mm 29" full carbon HM monocoque w/Bianchi CV, 1.5" tapered HT, BB92, only 1x drivetrain, PM 160mm carbon dropout, 12x148mm BOOST, internal cable routing, seatpost diam. 31,6mm, shock lenght/travel 190/40mm w/eyelets 20mm x diam.8mm, size
Fork Rock Shox Sid SL Select 29", Charger RL, Solo Air 100mm
Rear Shock Sram Sid Luxe Select + RLR, 190/40mm, Debonair, w/eyelets 20mm x diam.8mm
Rims DT Swiss XR1700 Spline 29" 25mm
Tires Kenda Booster Pro 29x2.20
Bottom Bracket Fsa EL247 PressFit w/spacers
Crankset Fsa K-Force BB392Evo 34T Modular 1X, Hollow carbon
Shifters Shimano XT SL-M8100R 12sp
Rear Derailleur Shimano XTR RD-M9100 SGS Shadow+ Design 12sp
Cassette/Freewheel Shimano CS-M8100-12, 10-51T
Chain Shimano CN-M8100, 12sp
Brakes Shimano XT BR-M8100
Rotors Shimano RT-MT800 diam. front 180mm and rear 160mm
Handlebars Reparto Corse, double butted AL2014-T6, width 740mm, diam.31,8mm, backsweep 9°
Tape/Grips T-One T-GP43X
Stem Reparto Corse, 3D forged AL7050-T6 w/forged alloy 4-bolt faceplate +/-7º
Headset Fsa Orbit C-40
Seatpost Reparto Corse Carbon SB0, lenght: 350mm-15'', 400mm-17/21", diam.31.6mm, 0mm seatback, carbon UD fiber shaft with forged head
Saddle Fi'zi:k Taiga, S-alloy rails
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/CK16 / 38cm 08032809829706 YRBP6I38MX
Black/CK16 / 43cm 08032809829737 YRBP6I43MX
Black/CK16 / 48cm 08032809829768 YRBP6I48MX
Black/CK16 / 53cm 08032809829799 YRBP6I53MX
