Do you really love your current bicycle, but wish you had an electric bike? No worries! At Wheelies, we can convert your bike into having the best of both worlds, so that you don't to part ways with the bike you adore.
Below are examples of different conversion packages that we can assist you with and install. Call today and speak to a trained professional for more information on how to convert your bicycle.
Please consult Wheelies if you are unsure about the compatibility of your bike or trike.
Note: Our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our technicians are available to help with compatibility questions and make recommendations on additional parts that you may need.
Description

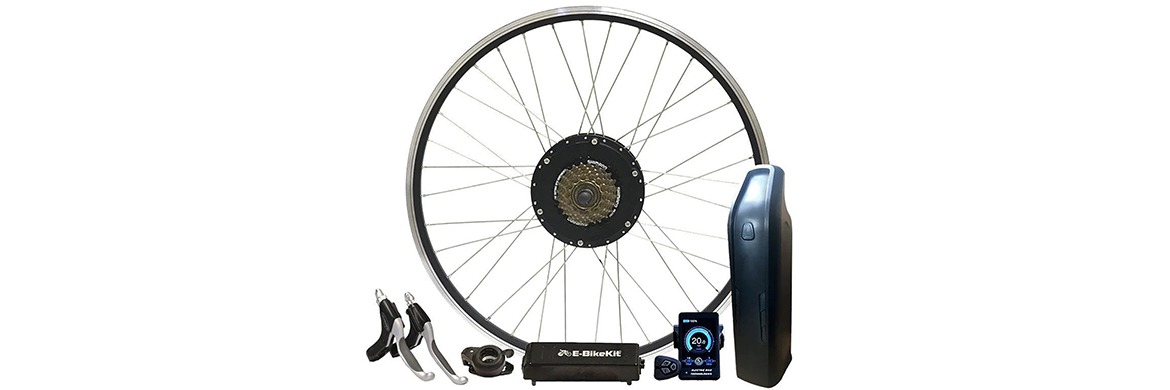

E-Bike Kit Rear Geared Hub Motor Conversion Kit with 48-Volt Li-ion Battery Pack and Charger.
This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight, stealth, and speed. The top speed is 28 mph! There is a 300 lbs. total load limit, so if you plan on more than that, look to a heavy-duty system.
System Specs:
Watts: Nominal 500 w/ 1000w
Top Speed: Approx. 26" = 26 mph / 700c = 27 mph / 24" = 24 mph / 20" = 20 mph
Range: 48v 9Ah = 9-18 miles / 48v 10Ah = 10-20 miles / 48v 14Ah = 14-28 miles / 48v 20Ah = 20-40 miles
Charge Time: 3-6 hours (from 0-100% and depending on battery size (Ah))
Load Limit: 300 lbs. max load (Based on rider weight, input and terrain contingent)
Battery Choice: We currently offer 4 battery pack models; all are li-ion using 18650 cells. The E-BikeKit is available without a battery and can be powered by any 48v battery pack. Kits purchased without a battery pack come with a battery wire harness for connecting to the E-BikeKit controller.
- Range: 9-18 Miles
This e-bike battery is a lightweight and easy to carry pack. Two of these packs will fit into one canvas battery bag (included) nicely, offering the option of taking one or two of these depending on your range needs. You do have to connect them one at a time as needed; same for charging.
** It is common to carry two 48v 9Ah batteries in the same canvas bag in order to double your range. However, these batteries can not be used in parallel with one another. In other words, you would have to physically unplug one, in order to use the other. **
- Range: 10-20 Miles
This li-ion e-bike battery offers a nice finished look plus a locking mechanism for securing the battery in the middle section of an included 2-tiered rack. The top of the rack remains clear and available.
- Range: 14-28 Miles
This electric bike battery pack is intended for mounting to your bikes existing water bottle mounts. This pack has a lock and key set plus it is side-released from the mount which makes it mostly universal. Please print the guide to be certain the pack will mount on your bike before buying. Although the mount is designed for the water bottle area, theoretically it can be mounted in many areas with some light fabrication.
- Range: 20-40 Miles
This e-bike battery is the largest capacity, longest range e-bike battery we offer. This pack weighs 14 lbs. and comes in our canvas battery bag with velcro straps for securing it to the top of a conventional rear rack (not included).
Motor Specs
Type: Internally Geared (disc brake compatible)
Power: 500w Nominal / > 1000 @48v
Max Torque: 84N-m @48v
Max RPM: 320 @48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4mm)
Weight: 9.4 lbs. (4.26 kg)
Warranty: 1 Year (up to 48v - 300 lbs. max load)
Battery Specs
Nominal Voltage: 48v
Nominal Capacity: 9Ah / 10Ah / 14ah / 20Ah (0.2C)
Battery Energy: 421Wh / 468Wh / 672Wh / 936Wh
Cell Assembly: 18650-3.6v-13S 4P / 5P / 4p / 10P
Life Cycles: Average 800 charge - cycles (one charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again)
Max Continuous Discharge: 20A / 22.5A / 50A
BMS Protection Current: 30A / 30A / 25A / 60A
Discharge Cut-Off Voltage: 37v
Max. Charge Voltage: 54.6v
Inner Resistance: 180mO / 180mO / 230O / 220mO
Charge Time: 4 hours / 3 hours / 4 hours / 5 hours
Operation Temperature Range: Charge: 0°C – 45°C / Discharge: -20°C – 60°C
Storage Temperature: 0°C – 40°C (Extended Storage: 15°C – 25°C;)
Battery Case Material: Blue PVC / Aluminum / Plastic / Blue PVC
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Limited Warranty: 1 Year
